Floppy Emu Model C
Floppy Emu is a floppy and hard disk emulator for classic Apple II, Macintosh, and Lisa computers. It uses a removable SD memory card for storing disk images, and mimics an Apple floppy disk and drive, or an Apple hard drive.
Say Hello to the Model C

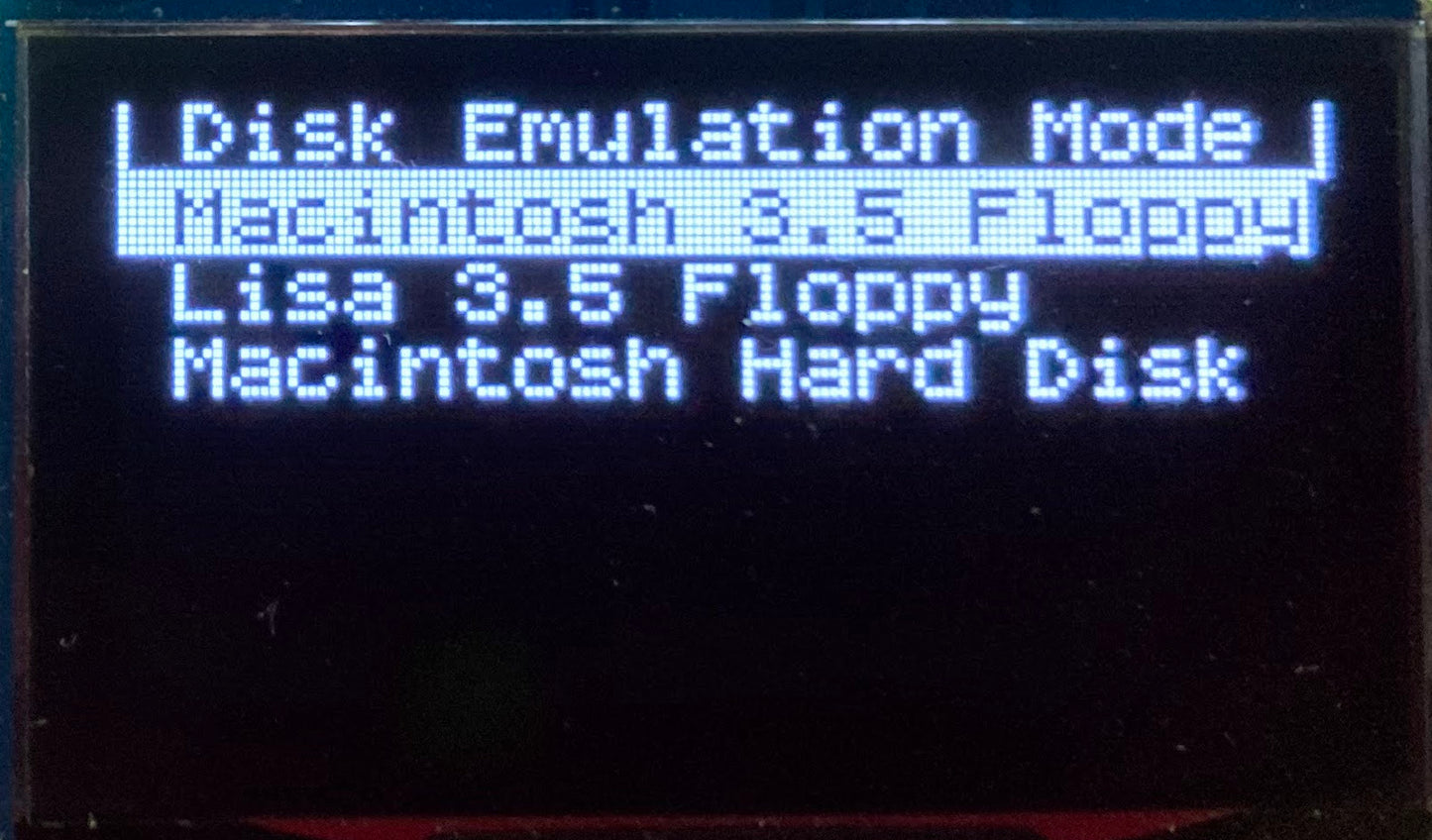

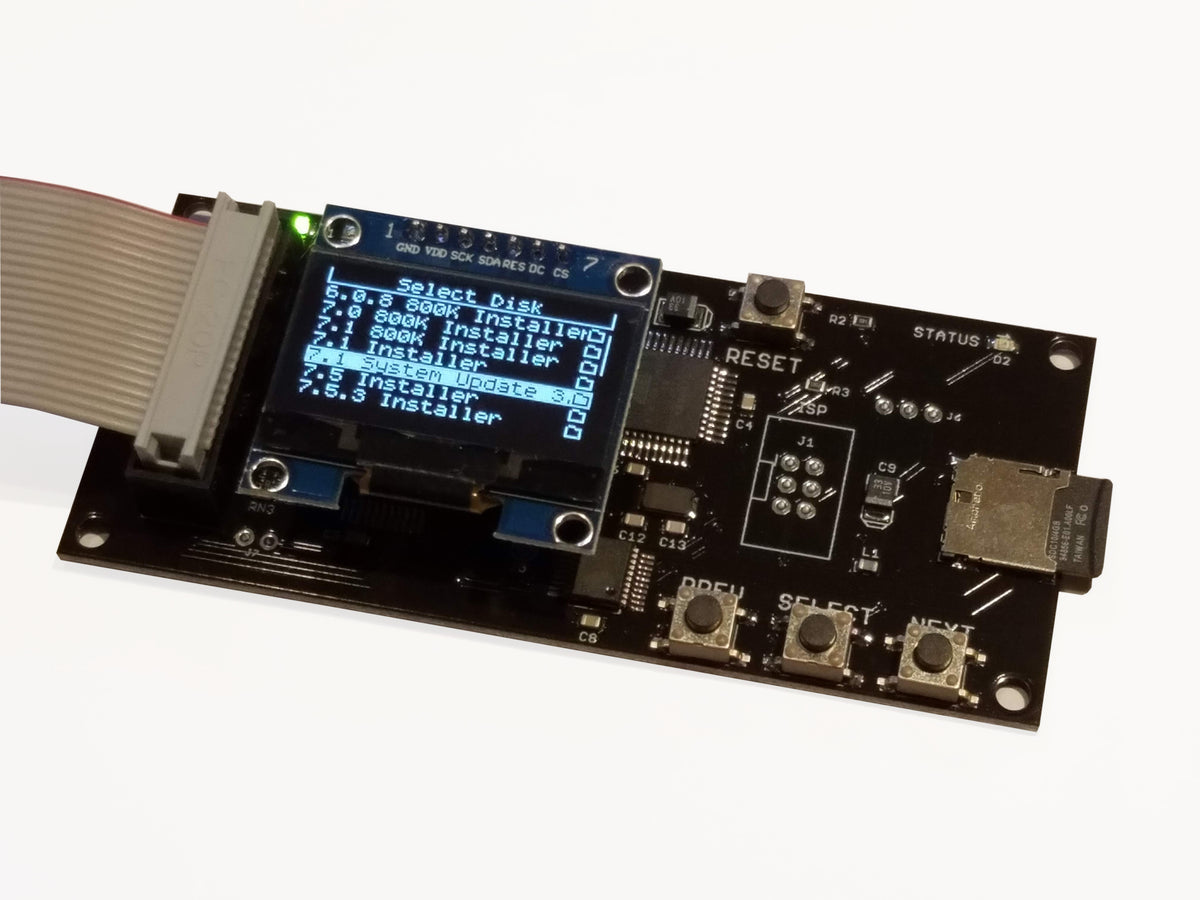

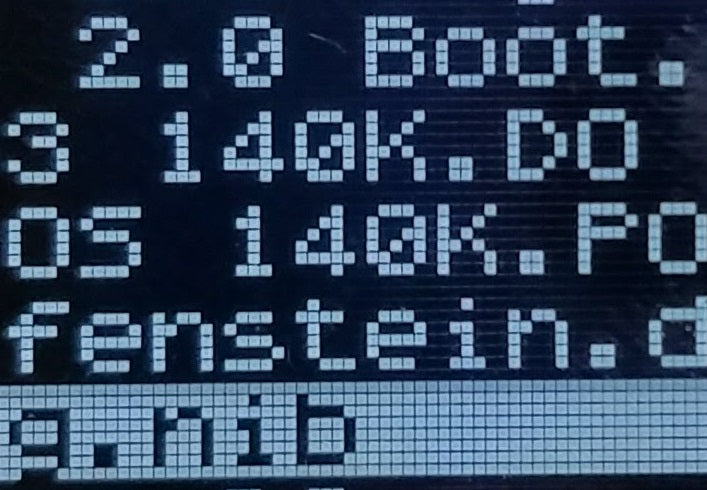

The new Floppy Emu Model C introduces an eye-catching 1.3-inch 128x64 OLED display, with crisp text and amazing contrast. Fonts are more detailed, and the OLED shows eight lines of text for better context when scrolling through a long list of filenames. The new display is a real treat for the eyes.
Model C also features a push-pull micro-SD card holder, for improved durability. This is the same style of SD card holder found in most mobile phones.

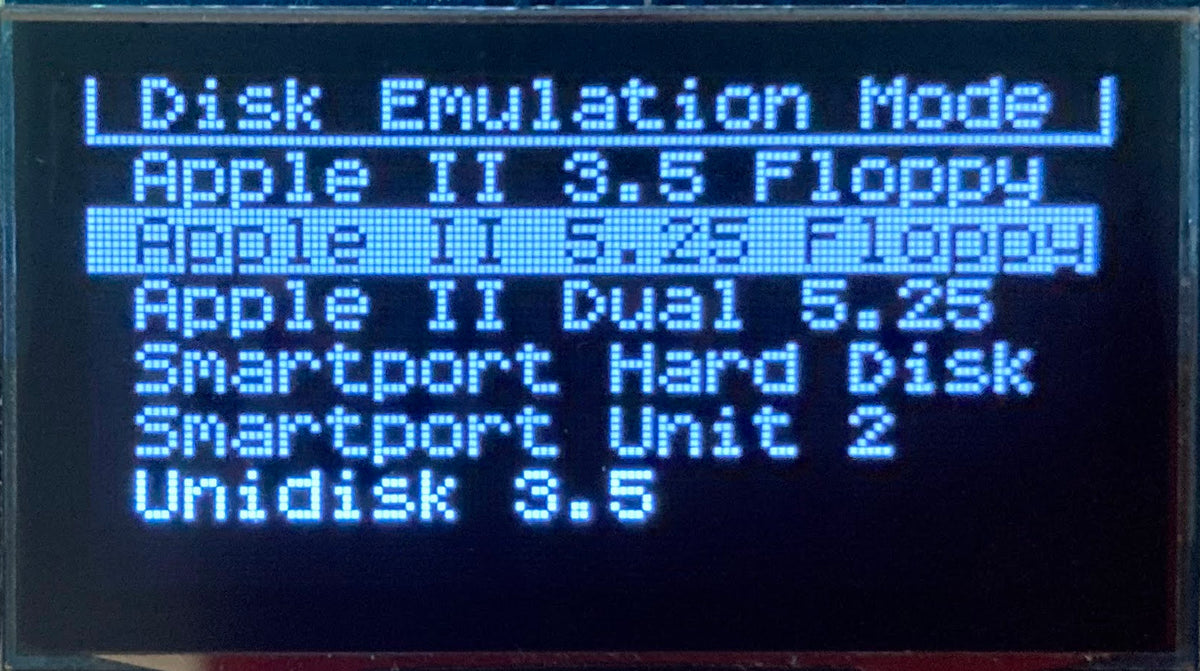

The same great disk emulation features from earlier models are also supported in the Model C. It's directly compatible with the entire Apple II line, emulating 5 1/4 inch disks, 3 1/2 inch disks, or Smartport hard disks all without the need for a separate adapter. Of course classic Macintosh and Lisa disk emulation is supported too. Model C reads and writes emulated 140K, 400K, 800K, or 1.4MB floppy disk images, or hard disk images up to 2GB, if supported by your Apple computer.

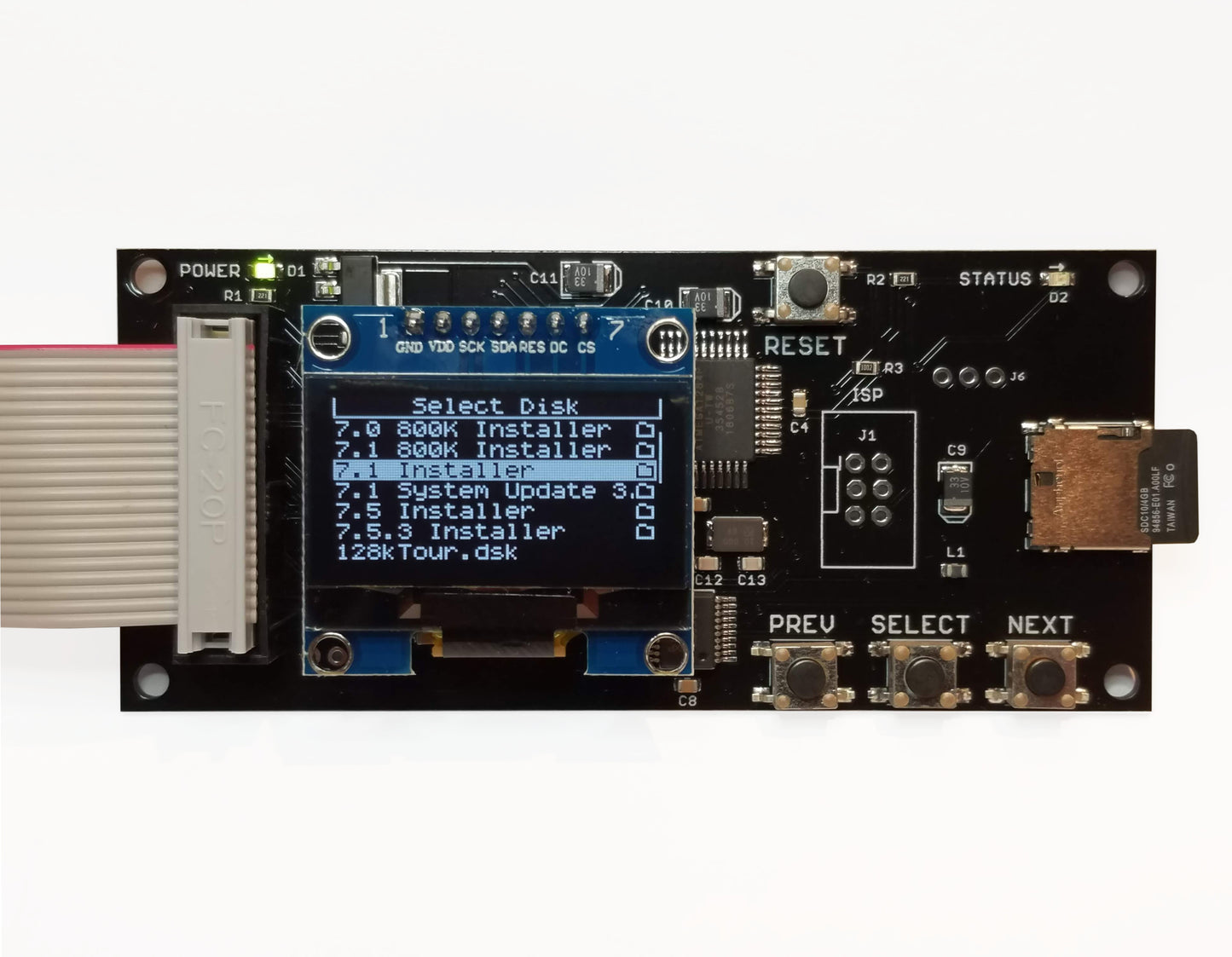

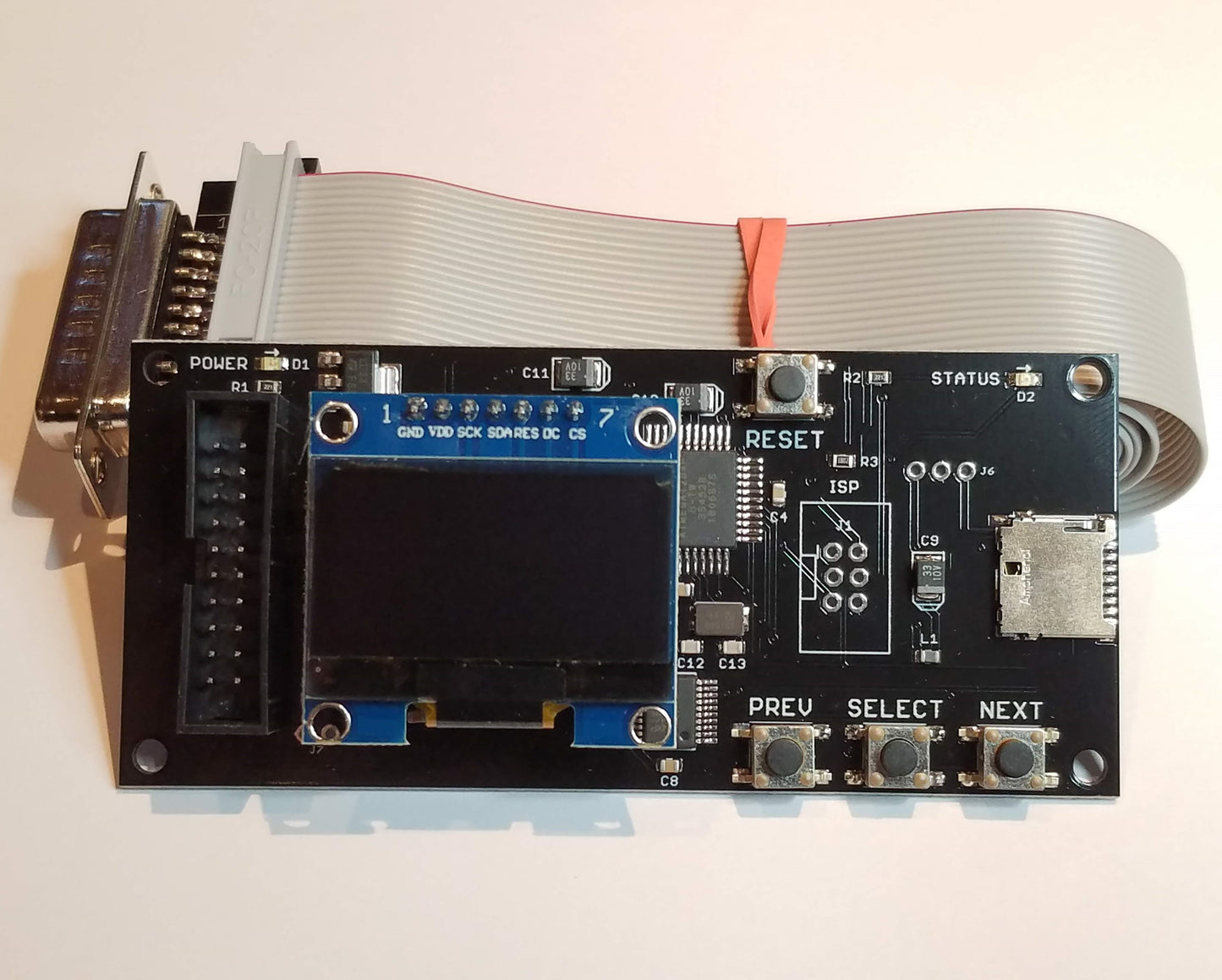

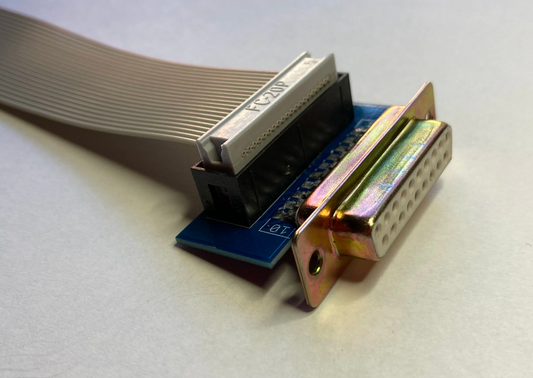

Your Floppy Emu board comes fully assembled and tested, and ready to use. It includes a 3 foot 20-pin ribbon cable for connecting to your computer, and a DB-19 adapter that mates with the 19-pin external disk port found on most vintage Apple machines. If necessary, this adapter can be removed and the cable can be connected to an internal disk header on the computer's logic board or disk controller.
- Apple II Floppy - 140K (5 1/4 inch) and 800K (3 1/2 inch) disks
- Apple II Hard Disk - Smartport disk volumes up to 32 MB
- Macintosh Floppy - 400K, 800K, and 1.4MB disks
- Macintosh Hard Disk - HD20-type disk volumes up to 2 GB
- Lisa Floppy - 400K and 800K disks, Lisa Office System and MacWorks
- See the compatibility table for more details

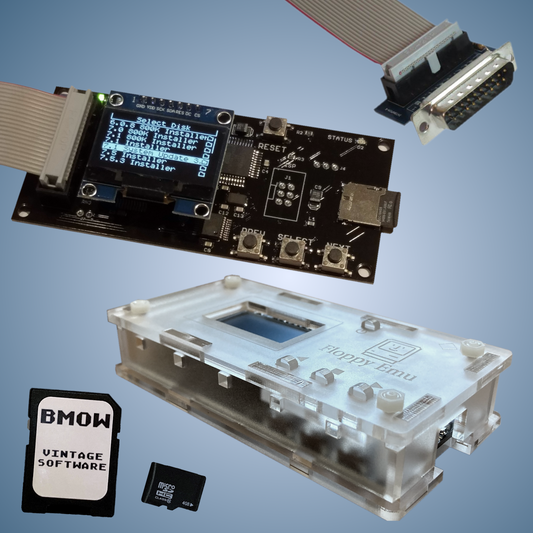

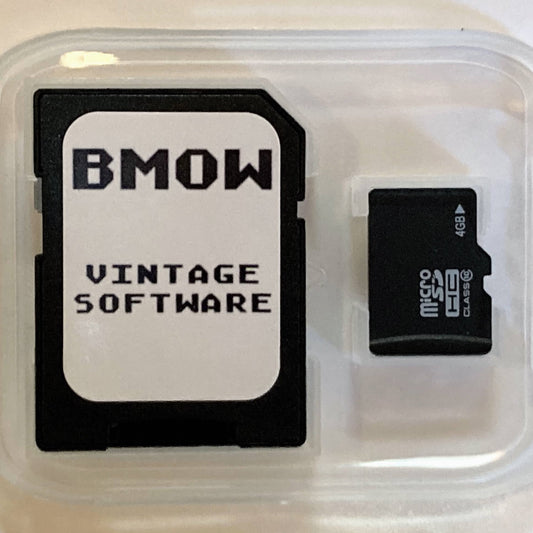

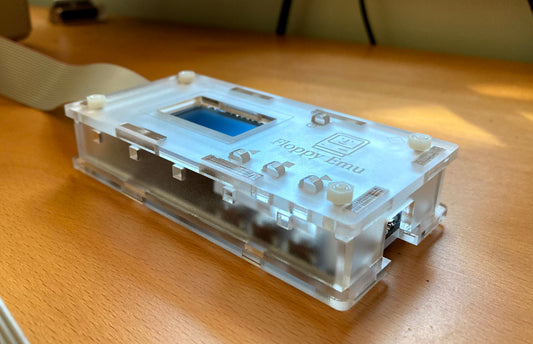

Need a case for your Emu, or an SD memory card, A/B disk switch, or other accessories? See the list of related products.
Please visit the Floppy Emu project page for complete product details, compatibility information, the user manual, and firmware updates.
Instruction Manual: PDF
Setup Guide: PDF
Firmware Downloads: project page
