Bulk Lot 500 pieces D-SUB DB-19 male connector
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
These DB-19 connectors (19-pin D-SUB) were newly manufactured in 2024 for Big Mess o’ Wires. These are the same DB19s sold with the BMOW Floppy Emu and other BMOW products.

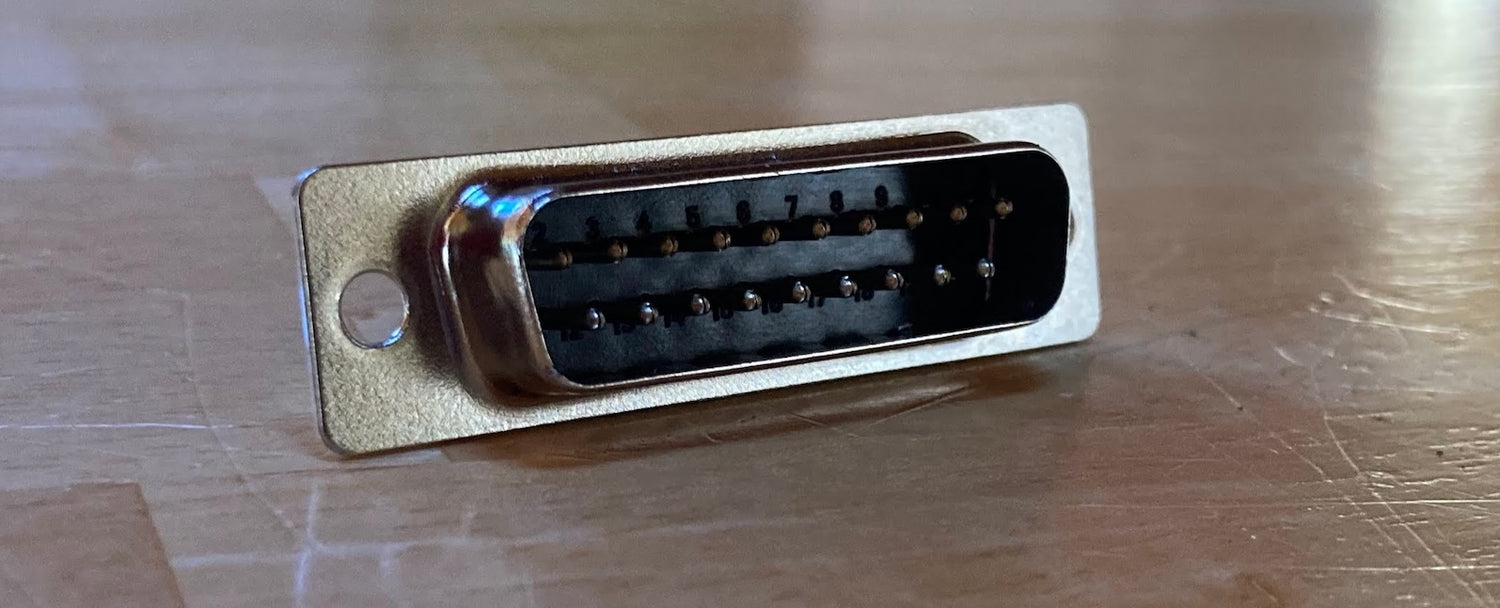

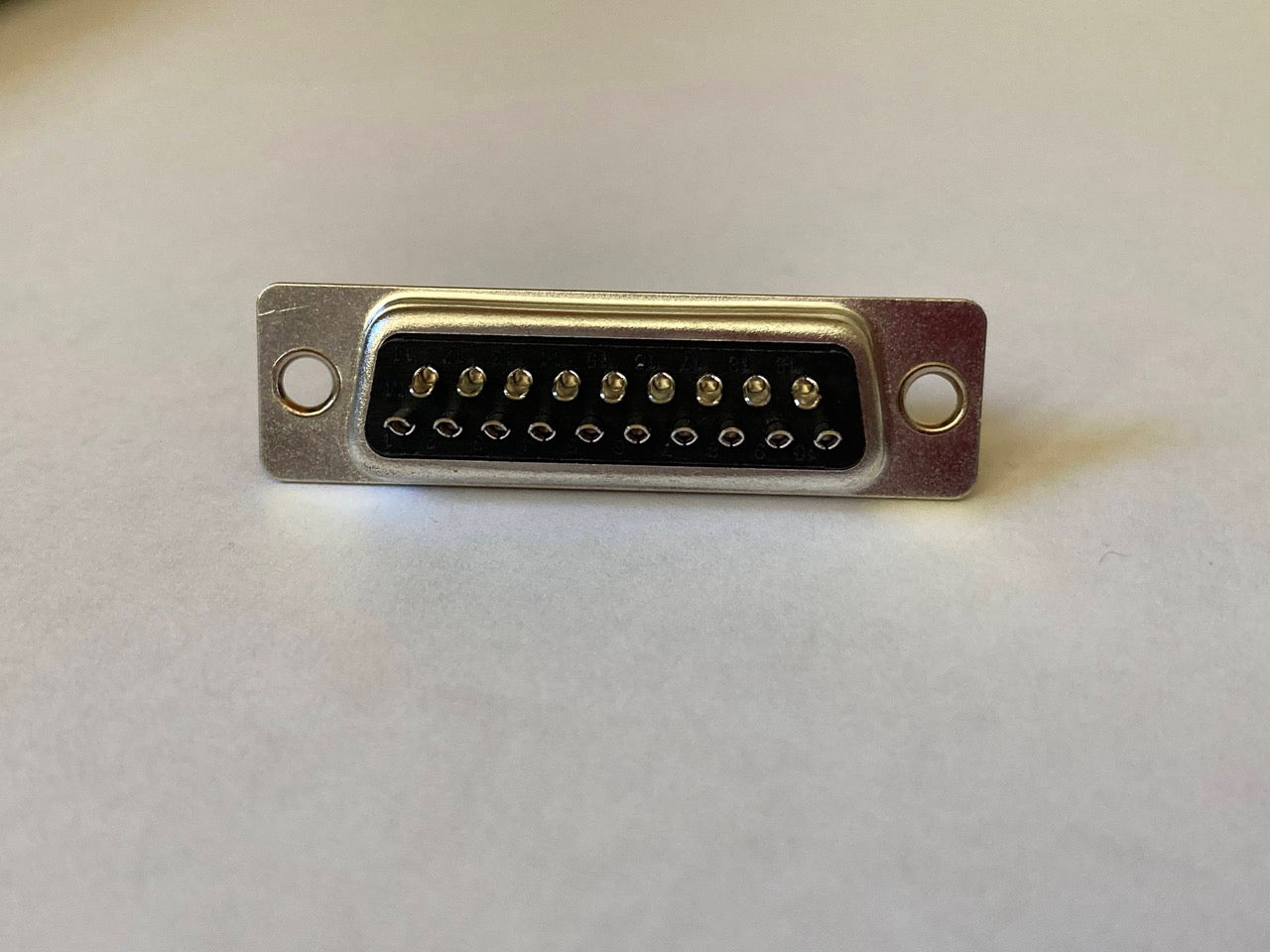

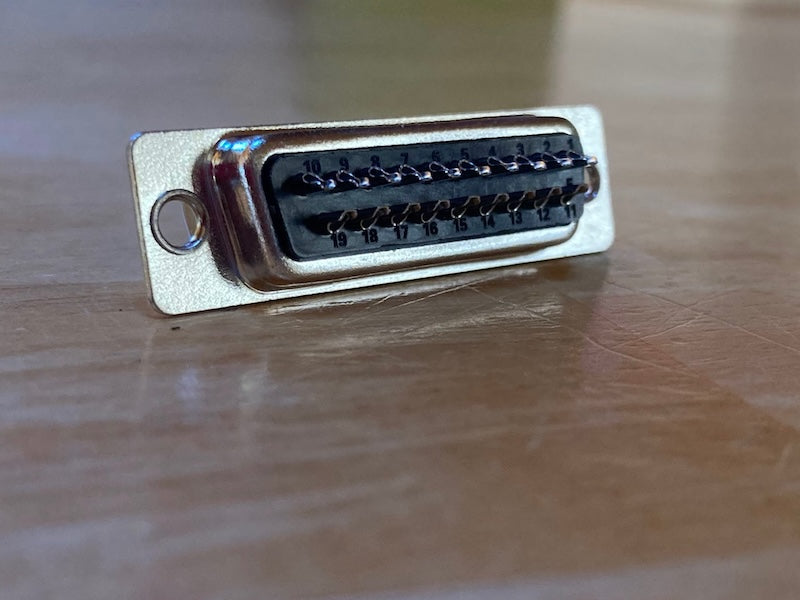

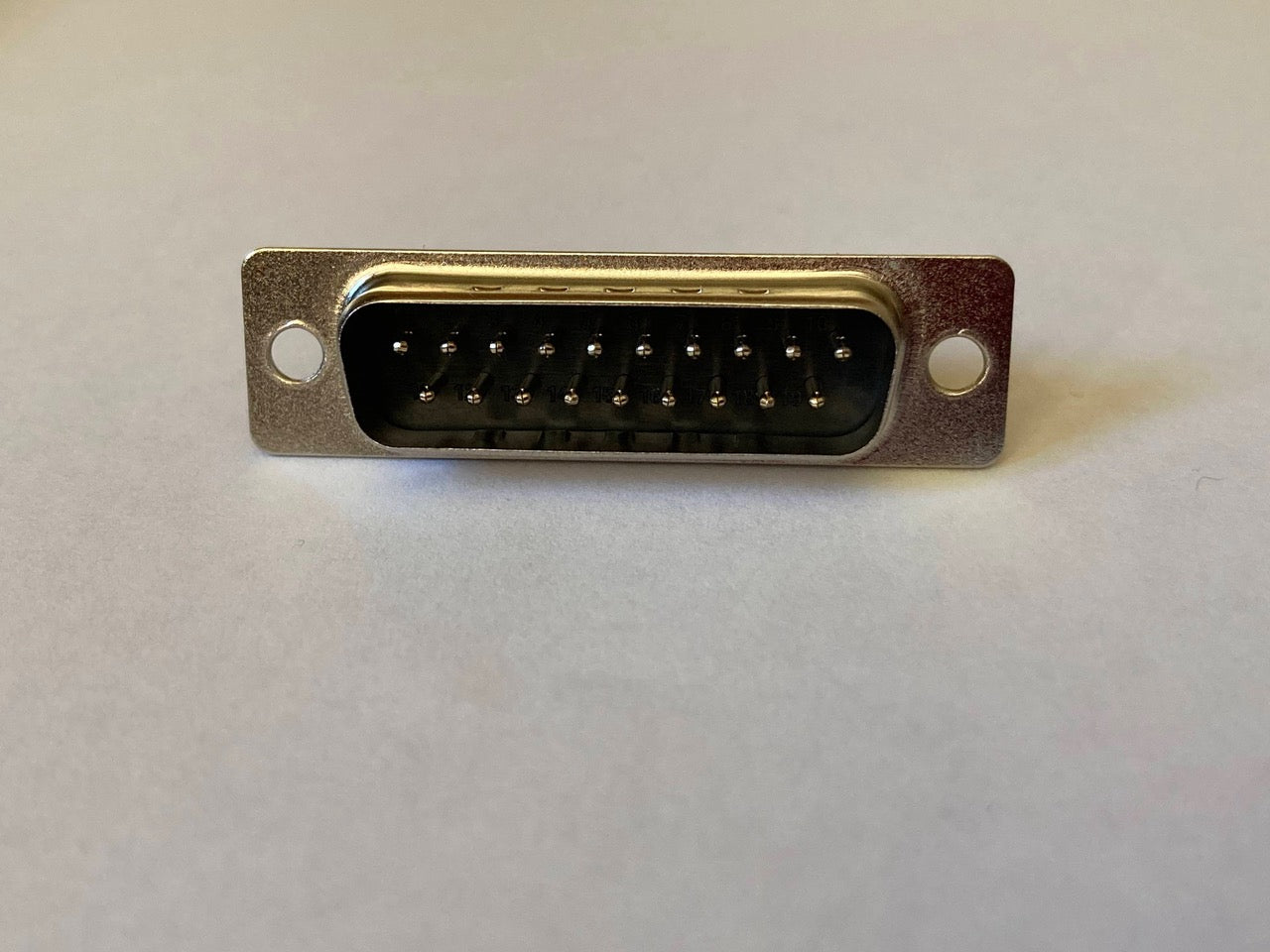

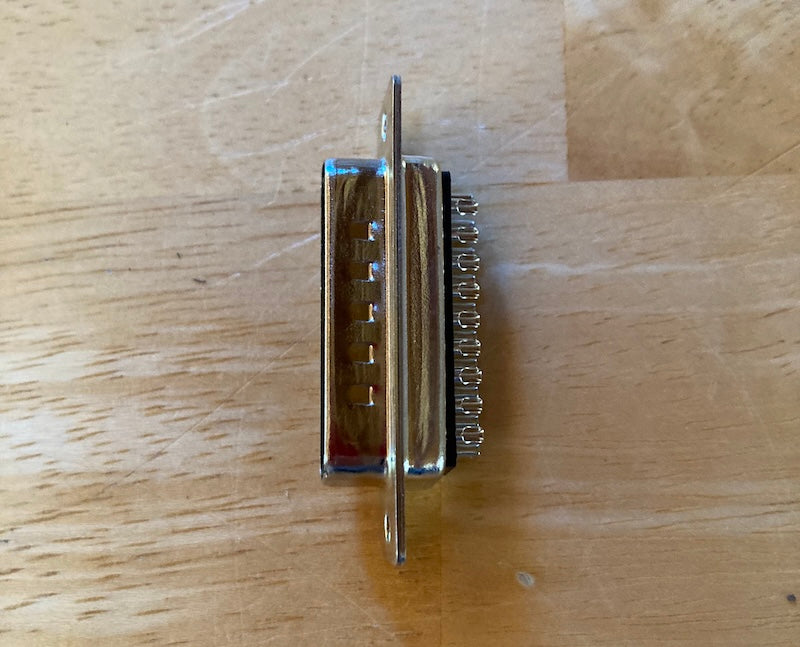

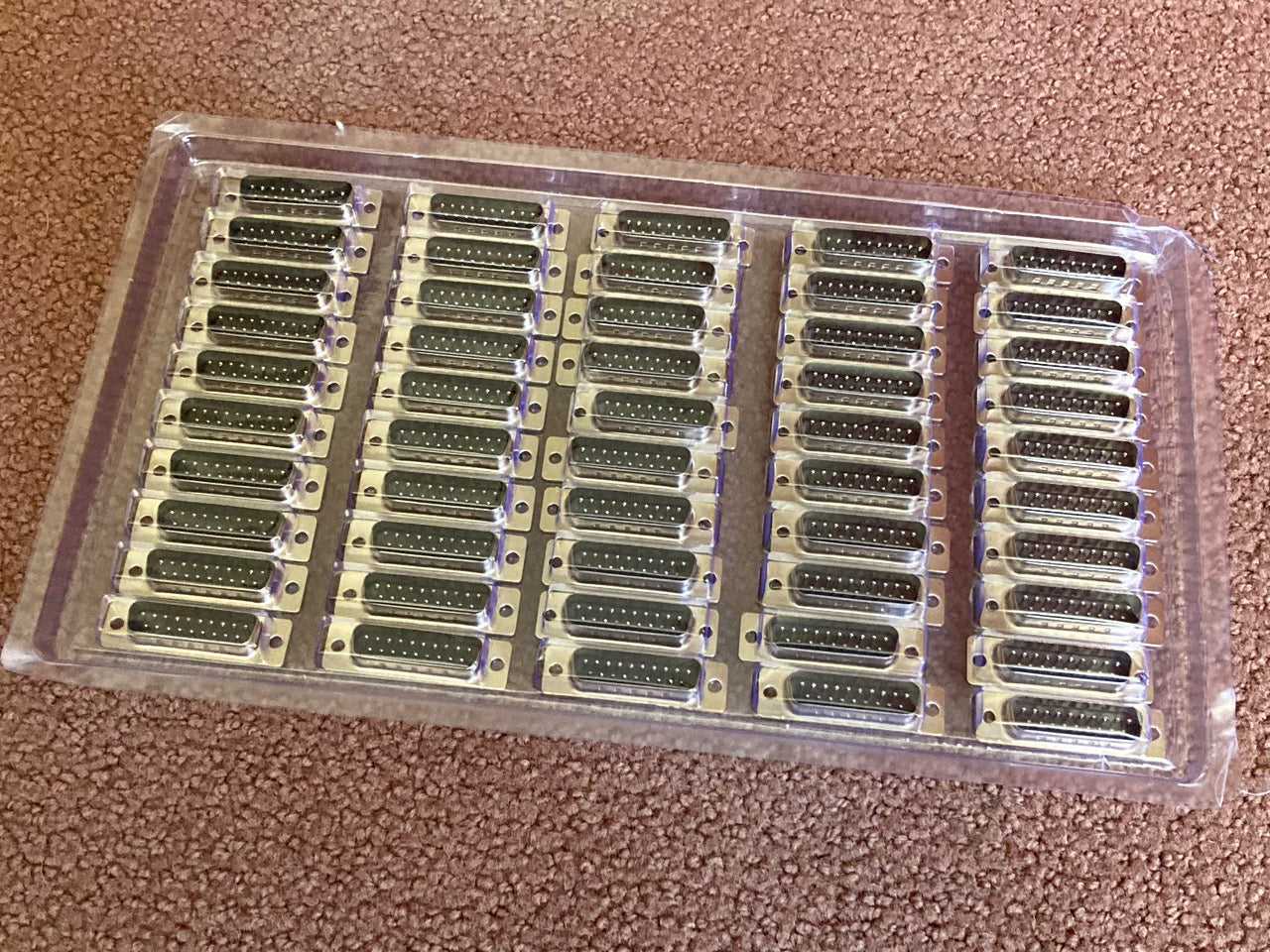

This is a bulk lot of 500 pieces. The connectors are DB-19 male, with solder cup terminals, solder type connector, sometimes called DB-19P. They are first quality, with an all-metal shell, not something 3D-printed or hand-built. It’s the connector itself (it does not have a shroud), and they can be used for making cables, or can also be edge-mounted on a 1.2mm or 1.6mm thick PCB. A footprint file for edge-mounting is available upon request. They are packaged in plastic trays of 50 pieces each, with 10 trays (500 pieces) per box.
The DB-19 is needed for several vintage computers: it's the standard connector for floppy disk drives on Apple II and early Macintosh systems, the Macintosh HD-20 hard disk, the Atari ST hard disk ACSI port, and for making monitor cables for NeXT computers.
Today the DB-19 connector is hard to find, expensive, and large lots like this one are rare. I’m offering them here to help support the rest of the vintage computing community. Whether you're restoring a Mac, Apple II, Atari ST, or NeXT system, these brand-new DB-19 connectors are ready to bring your old hardware back to life.
